Description

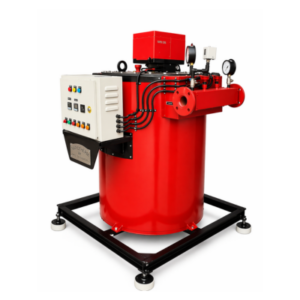

These Hot Water Generators Come In Different Shapes/sizes And K. Watts As Specified By The Customer Generators For Recycling Of Water, For Water Storage etc.. Rc Uses The Latest End Technology With microprocessor based Step Controller, scr based proportional controller (stepless) And Digital Thermometers For More Accuracy And Power Saving.
Thus Making Our Hot Water Generator Maintenance Free. All These Hot Water Generators Are Pressure Tested in the range of 250-350 P.S.I.G. As Specified By The Customer.
FINANCIAL BENEFITS :-
One time investment with prolonged trouble free working life leads to considerable savings, compared to the number of Small Electric Generators used at different spaces in building, Running cost is much lower than Thermic Fluid and Steam Heating. Which means Low operation and maintenance cost.
EASY MAINTENANCE :-
High quality body and shell materials, master welding and fabrication, special wiring and Electrical Control Panel, there is hardly any need for time of time maintenance. Simple operation, involving connection to Water and Electric Main Supply, can be done by even a layman(but should be done by an electrician). In the event of any problem in replacement of worn out parts, our technicians are promptly deputed at Sites anywhere in the Country.
CONSTRUCTIONAL FEATURES :-
The Generators may be either Vertical or Horizontal Type as per availability of space for installation at roofs or basement of Buildings, Body and shell of Water Tank is generally of M.S Sheets, S.S Sheet optional Electrical resistance Immersion Type Heating Elements of Copper Tube Chrome Plated Heating Elements are used. High Standard internal wiring and Electrical Control Panel from an Integral part of Generator’s for safe and automatic control of Hot Water Temperature on continued basis.
Technical Specifications :-
- Shell type:- Horizontal / vertical Material used for construction : mild steel/ stainless steel the shell can also be designed and tested As per the specified flow rate if desired by the customer.
- Pressure testing:- 250-350 p.s.i.g. Depending on the requirement of the customer
- Insulation:- 50/100 mm resin bonded thick fiber glass wool with 24/32 kg/cube m or as per Specified by the customer. Cladded with 0.8 aluminum sheet.
- Heaters specification:-
240 v + 10%, 50 cycle 3 phase a.c. SupplyFlange type
‘U’ tube in copper/ stainless steel/ incloy as specified by the customer - Note:- These heaters are installed in such a way that they could be removed without opening the Terminal plates or disturbing any other components.
- Controls:- Digital step controller/thermostat for individual step Digital / dial type thermometer for inlet, outlet pipe (if using thermostats for control) Pressure gauge with ball valve for inlet, outlet pipe SCR based linear controller (step less) for hot water generators.
