EVI Heat Pump

Category Heat Pump Brand: RAPID COOL, RAPIDSUNN

EVI Air Source heat pumps transfer heat from the ambient air to water, providing hot water up to 60°C. The unique Low ambient-temperature heat pump is widely used for house warming. With innovative & advanced technology, the direct-heating heat pump can operate very well at -25°C ambient temperature with high output temperatures up to 60°C, which ensures the compatibility with normal sized radiator based systems without supplementation.

Specification	Unit	RS-EVI-10U	RS-EVI-19U	RS-EVI-37U	RS-EVI-43U	RS-EVI-70U
Heating Capacity	kW	10.3	18.7	37.4	43.4	69.8
COP		4.42	4.45	4.41	4.51	4.58
Rated Heated Water Output	L/H	220	400	800	930	1500
Rated Outlet Water Temp.	°C	55	55	55	55	55
Max Outlet Water Temp.	°C	60	60	60	60	60
Rated Power Input	kW	2.32	4.2	8.48	9.63	15.23
Rated Current	A	11.1	7.85	16.11	18.29	28.93
Power Supply		220–240V / 50Hz / 1Ph	220–240V / 50Hz / 1Ph	380–415V / 50Hz / 3Ph	380–415V / 50Hz / 3Ph	380–415V / 50Hz / 3Ph
Compressor Type		Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)
Number of Compressors		1	1	2	2	2
Throttling Device		Electronic Expansion Valve	Electronic Expansion Valve	Electronic Expansion Valve	Electronic Expansion Valve	Electronic Expansion Valve
Fan Discharging		Vertical	Vertical	Vertical	Vertical	Vertical
Fan Quantity	Piece	1	1	2	2	2
Fan Input	W	70	250	250	250	750
Ambient Temperature	°C	-25 ~ 43	-25 ~ 43	-25 ~ 43	-25 ~ 43	-25 ~ 43
Refrigerant		R407C / R410A	R407C / R410A	R407C / R410A	R407C / R410A	R407C / R410A
Circulation Flow	m³/h	1.76	3.2	6.44	7.47	12
Circulation Pressure Drop	kPa	≤30	≤60	≤65	≤65	≤65
Noise at 1 Meter Distance	dB(A)	≤59	≤62	≤63	≤63	≤68
Water Pipe Size	inch	R1	R1	R1-1/2	R1-1/2	Rc2-1/2
Cabinet		Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating
Dimension (L × W × H)	mm	710 × 710 × 795	800 × 800 × 1110	1450 × 890 × 1110	1450 × 890 × 1110	1990 × 980 × 2045
Net Weight	kg	107	129	268	305	552

Testing Condition:
Ambient Temp. (DB/WS) = 20°C / 15°C, Input/Output Water Temp. = 15°C / 55°C

Category: Heat Pump Brand: RAPID COOL, RAPIDSUNN

Description

Description

Features:-

Low running costs and high efficiency (COP up to 5)
Reduced Capital Costs as it is Compatible with traditional radiator systems
Long-life and corrosion resistant composite cabinet stands severe climates.
American Copeland/ Panasonic scroll compressor ensures outstanding performance, ultra energy efficiency, durability and quiet operation.
Self-diagnostic digital control panel monitors and troubleshoots heat pump operations to ensure safe and reliable operation.

Specification	Unit	RS-EVI-10U	RS-EVI-19U	RS-EVI-37U	RS-EVI-43U	RS-EVI-70U
Heating Capacity	kW	10.3	18.7	37.4	43.4	69.8
COP		4.42	4.45	4.41	4.51	4.58
Rated Heated Water Output	L/H	220	400	800	930	1500
Rated Outlet Water Temp.	°C	55	55	55	55	55
Max Outlet Water Temp.	°C	60	60	60	60	60
Rated Power Input	kW	2.32	4.2	8.48	9.63	15.23
Rated Current	A	11.1	7.85	16.11	18.29	28.93
Power Supply		220–240V / 50Hz / 1Ph	220–240V / 50Hz / 1Ph	380–415V / 50Hz / 3Ph	380–415V / 50Hz / 3Ph	380–415V / 50Hz / 3Ph
Compressor Type		Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)	Scroll (Emerson / Panasonic)
Number of Compressors		1	1	2	2	2
Throttling Device		Electronic Expansion Valve	Electronic Expansion Valve	Electronic Expansion Valve	Electronic Expansion Valve	Electronic Expansion Valve
Fan Discharging		Vertical	Vertical	Vertical	Vertical	Vertical
Fan Quantity	Piece	1	1	2	2	2
Fan Input	W	70	250	250	250	750
Ambient Temperature	°C	-25 ~ 43	-25 ~ 43	-25 ~ 43	-25 ~ 43	-25 ~ 43
Refrigerant		R407C / R410A	R407C / R410A	R407C / R410A	R407C / R410A	R407C / R410A
Circulation Flow	m³/h	1.76	3.2	6.44	7.47	12
Circulation Pressure Drop	kPa	≤30	≤60	≤65	≤65	≤65
Noise at 1 Meter Distance	dB(A)	≤59	≤62	≤63	≤63	≤68
Water Pipe Size	inch	R1	R1	R1-1/2	R1-1/2	Rc2-1/2
Cabinet		Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating	Stainless Steel / Steel with Powder Coating
Dimension (L × W × H)	mm	710 × 710 × 795	800 × 800 × 1110	1450 × 890 × 1110	1450 × 890 × 1110	1990 × 980 × 2045
Net Weight	kg	107	129	268	305	552

Testing Condition:
Ambient Temp. (DB/WS) = 20°C / 15°C, Input/Output Water Temp. = 15°C / 55°C

EVI Heat Pump

Share:

Description

Related products

Heat Pump (Air & Water Source)

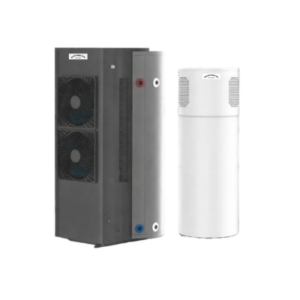

All In One Heat Pump

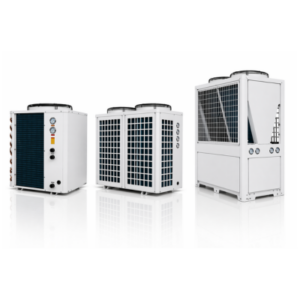

Commercial Heat Pump

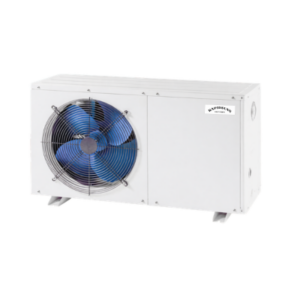

Monoblock Heat Pump
